GL-303B

     Key Machine ---    Gladaid    ---

Previous ‹‹ » Next

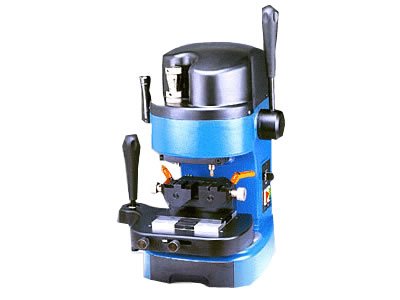

GL-303B


-Exclusive system with synchronized tilting axis permits clamp to be slanted gradually and progressively
.....to any angle between 0 to 45 clockwise & counter-clockwise.
.....The property is very useful for perfect duplication of keys with angular cuts.

-The pitch angle indicator can show you the cutting angle precisely.

-New type micro adjusting scale can help the adjusting work more precise.

-Horizontal action lever can make the cross plate which is with ball bearing to be moved smoothly & easily.

-Special designed tracer spring can make tracer have spring property to aim at the hole firstly, then cut so
..... it help user to avoid any miss-cutting.

-While make the snake/profile cut key, user can lock both the vertical action lever & tracer spring set to fix
..... your cutting depth.

-Cross plate intelligent control knob is special designed for slotting cut & snake/profile cuts.
..... Lock it, there will have a spring property to lean against the edge of cut area automatically.

-The speed adjusting knob, you can adjust the cutter's R.P.M. upon your requirement.

DIMENSIONS :
MOTOR :
Width 230mm   Single- phase
Depth 310mm   2P 90W
Height 520mm   Rpm 10000
Net Weight 24kg   110V or 220V
Gross Weight 26kg   50Hz or 60Hz
Measurement 4 Cubic Feet
